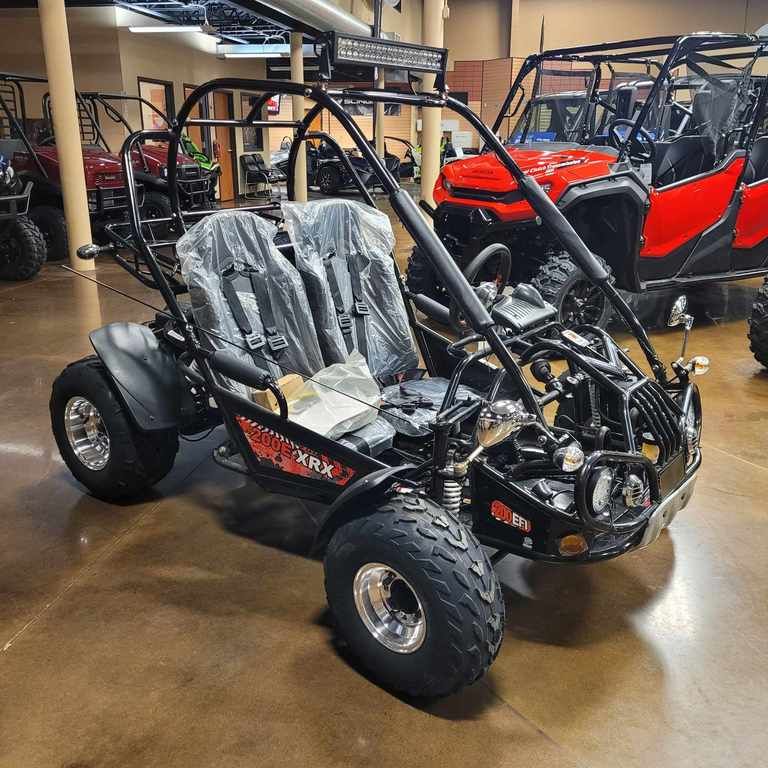

2023 TrailMaster 200E XRX

2023 TrailMaster 200E XRX

Features include:

• Polished Aluminum wheel

• Digital speedometer/odometer

• Top hunting lights

• Aluminum side mirrors

• Turn signals

• Sporting steering wheel

• Electric start with kill switch

• Fully automatic with reverse, high performance GY6 engine with internal reverse set up

• Adjustable steering wheel

• Large tires with 20X7-8 in the front and 22X10-10 in the back

• Four-point safety seatbelt

• Individual sporting seats

• Polished stainless steel muffler

• High-low beam head light

• Bikini sunshade top

• Adjustable driver seat: pedal to seat back adjustable from 39” to 43”

• Central rear view mirror

• Heavy duty front and rear shock absorber

• Rack and pinion steering wheel

• Front and rear hydraulic disc brake

• 4-point rear swing arm

• Parking brake

• 4-wheel fenders

• Trailer hitch
• Large rear utility rack
• Large gas tank

2023 TrailMaster 200E XRX Base

• Year:2023
• Manufacturer:TrailMaster
• Model Name:200E XRX
• Trim Name:Base
• Generic Type (Primary):General
• Engine Type:4-stroke, single cylinder, air cooled
• Displacement:169cc
• Engine PowerMax: 11hp/8000rpm
• Engine TorqueMax: 8.1 lb ft/6000rpm
• Bore:2.4 inches
• Stroke:2.28 inches
• Ignition;ECU
• Starter:Electric
• Carburetion;Deli (Vacuum film)
• Oil Type;Engine: SAE 15W-40
• Battery:12V 10Ah
• Drive:train
• Clutch:Automatic CTV with reverse
• Driveline:Chain | Driving wheel: Dual wheel drive
• Suspension
• Front Suspension:Double A-arm
• Rear Suspension:swing-arm
• Brakes
• Front braking system:hydraulic, Disc
• Rear braking system:hydraulic, Disc
• Wheels & Tires
• Front Tire:20×7-8
• Rear Tire:22×10-10
• Wheels:Aluminum
• Dimensions:Climbing ability: 18 degrees | Pedal to seat back distance: 39” to 43”
• Wheelbase:59 inches
• Overall Vehicle Size :(LxWxH)85×53.1×57.5 inches
• Heightto Seat: 13.8 inches
• Ground Clearance:Min: 6.7 inches
• Capacities
• Fuel Capacity2.25 gal
• Cargo CapacityMax: 500 lbs
• Weights
• WeightN.W: 485 lbs
• GVWR573 lbs
